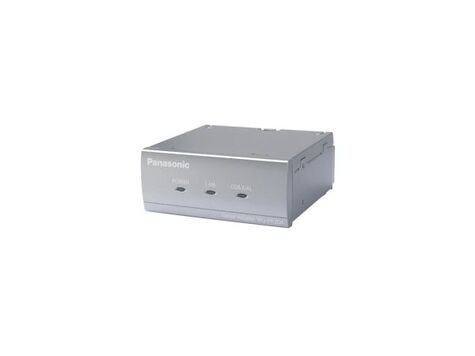

Name: i-PRO Coaxial - LAN Converter 4-Channel (Receiver Side Unit)
Brand: i-PRO
SKU: WJ-PR204E
Price: 404.00 EUR
Availability: InStock

i-PRO Coaxial - LAN Converter 4-Channel (Receiver Side Unit)

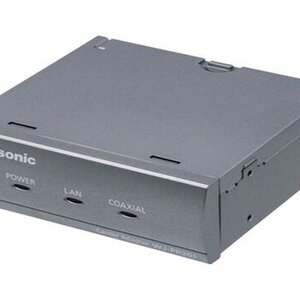

Two models (4-channel and 1-channel) are provided on the receiver side
Up to 4 network cameras can be connected and used on a single receiver side unit.(WJ-PR204)
Power over Ethernet Plus (PoE+) ready: the coaxial – LAN converter is compliant with PoE+ standards (IEEE802.3at) and PoE+ cameras can be connected and used*1.
Use over long distances: the coaxial – LAN converter can be used for distances of up to 300 m (984 feet) for PoE+ connections, 500 m (1,640 feet) for PoE connections and 2.0 km (6,560 feet) for non-PoE+ connections. (When used with RG-6/U coaxial cable, and the loop resistance is below 4 O/100 m {328 feet} without additional joint parts.)
High-speed transmission: The coaxial – LAN converter is capable of transmission speeds of 35 Mbps or over for TCP*2, and 45 Mbps or over for UDP connections*2. (When used with RG-6/U coaxial cable, and for distances under 2.0 km (6,560 feet)
No setup required: Connections can be established by simply connecting the coaxial cable to the coaxial – LAN converter.

*1 There are limitations on the combinations of the cameras to be connected, the type of power supply and transmission range to the receiver side units. For more detail please see the operating instructions on our website (https://security.panasonic.com/pss/security/support/info.html).
*2 Transmission speed is the speed of transmission between the receiver side unit and the camera side unit. Values may vary depending on the condition of the coaxial cable (for example, as the cable deteriorates over time), network conditions, etc.
