Name: Ubiquiti Pro XG 48 PoE Etherlighting 1080W 10G
Brand: Ubiquiti
SKU: USW-PRO-XG-48-POE
Price: 2428.00 EUR
Availability: InStock

Ubiquiti Pro XG 48 PoE Etherlighting 1080W 10G

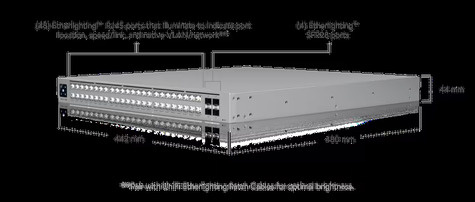

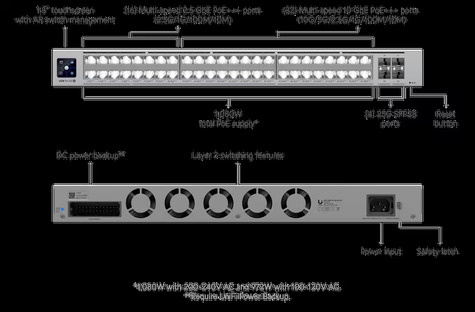

imensions 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") Port Layout 2.5 GbE RJ45 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28 4 (25G/10G/1G) Max. PoE Output Up to PoE+++ Total PoE Availability 200-240V AC: 1080W 100-120V AC: 972W Redundancy DC Power Backup Layer 3 ✓ Form Factor Rack mount (1U) Etherlighting™ ✓ Performance Switching Capacity 920 Gbps Total Non-Blocking Throughput 460 Gbps Forwarding Rate 684 Mpps Supported VLANs 1,000 MAC Address Table Size 128,000 L3 Table Size ARP Entries 128,000 IPv4 Routes 256,000 Packet Buffer Size 8 MB Layer 3 Features DHCP Server (Local Networks) ✓ DHCP Relay ✓ Inter-VLAN Routing (Local Networks) ✓ Static Routing (Local Networks) ✓ Layer 2 Features LACP Port Aggregation ✓ STP & RSTP ✓ QoS (DSCP) ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) ✓ Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓ IGMP Snooping ✓ 802.1X Control ✓ MAC-Based ACLs & Device Isolation ✓ DHCP Snooping & Guarding ✓ Egress Rate Limit ✓ Flow Control ✓ Storm Control ✓ Multicast & Broadcast Rate Limiting ✓ MAC Address Blocking ✓ IP-Based ACLs & Network Isolation ✓ MAC-Based Port Restriction ✓ Port Isolation ✓ Port Mirroring ✓ Jumbo Frames ✓ LLDP-MED ✓ Voice VLAN ✓ Loop Protection ✓ Hardware PoE Ports PoE+++ 48 Max. PoE Wattage per Port by PSE PoE 15.4W PoE+ 30W PoE++ 60W PoE+++ 90W Max. Power Consumption 200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output) Power Method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input Power Input Method AC input Power Supply AC/DC, internal, 1,350W Supported Voltage Range 100—240V AC Management Ethernet AR Weight Without mounting brackets: 8.7 kg (15.4 lb) With mounting brackets: 8.8 kg (15.7 lb) Enclosure Material SGCC steel Mount Material SGCC steel Supported Rack Depth 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) LCM Display 1.3" touchscreen ESD/EMP Protection Air: ± 30kV, contact: ± 20kV Ambient Operating Temperature -5 to 40° C (23 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Etherlighting™ Ethernet ✓ SFP28 ✓ LEDs RPS ✓ NDAA Compliant ✓ Certifications CE, FCC, IC Software Application Requirements UniFi Network Version 9.1.120 and later
