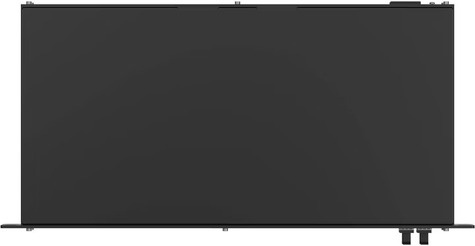

Name: Teltonika 24 Port Gigabit managed half-PoE+ L2+ Switch 4x SFP 19i
Brand: Teltonika
SKU: SWM280000200
Price: 324.00 EUR
Availability: InStock

Teltonika 24 Port Gigabit managed half-PoE+ L2+ Switch 4x SFP 19i

Ethernet

Fiber: 4 x SFP ports
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
ETH: Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Performance Specifications

Bandwidth (Non-blocking): 56 Gbps
Forwarding rate: 83.33 Mpps
Packet buffer: 512 KB
MAC address table size: 8K entries
Jumbo frame support: 10000 bytes

PoE Out

PoE ports: Port 1-12
PoE Standards: 802.3af and 802.3at Alternative A
PoE Max Power per Port (at PSE): 30 W
Total PoE Power Budget (at PSE): 300 W

Power

Connector: C14 connector
Input voltage range: 100-240 VAC, 50/60 Hz
PoE-out input voltage range: 9 – 30 VDC
Power consumption: Idle: 7.5 W / Max: 325 W / PoE Max: 300

Physical Interfaces

Ethernet: 24 x RJ45 ports, 10/100/1000 Mbps
Fiber: 4 x SFP ports
Status LEDs: 1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
Power: 1 x C14 connector
Reset: Software reset button
Other: 1 x Grounding screw

Physical Specification
