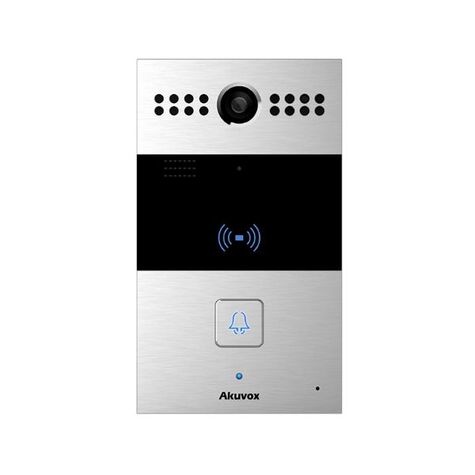

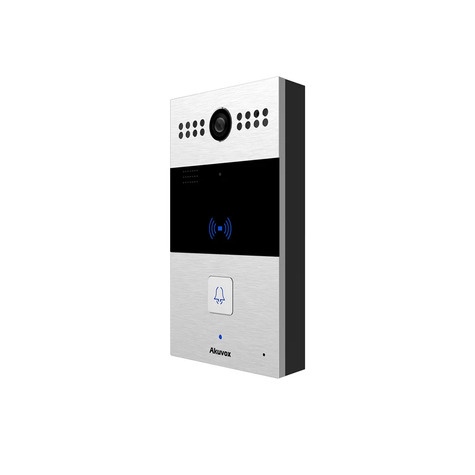

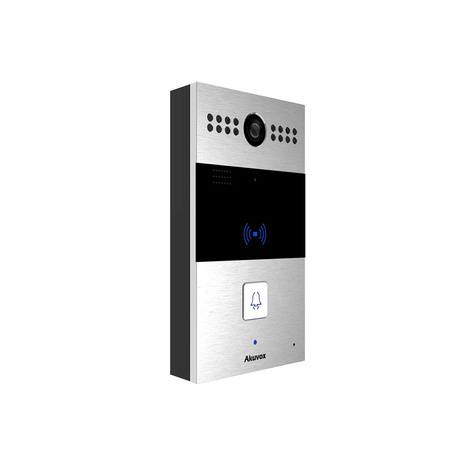

The security that comes with being able to control who comes into your building along with the ability to verbally and visually confirm their identity is immeasurable. Akuvox's Video Doorphone R26Cenables you to easily monitor an entrance door or gate and gives you the peace of mind knowing that your facility is more secure.

At a Glance

• Vandal resistant body, witha flush button
• Wide-angle camera: 116º(H), 60º(V)
• PoE (IEEE802.3af, Power-over-Ethernet)
• Two-way audio communication over IP networks with Echo Cancel feature
• Complies with SIP standard for easy integration in every SIP capable PBXes
• Complies with ONVIF standard for easy integration with any network surveillance system

Physical & Power

• Frontpanel: Aluminum
• Camera: 2M pixels, automatic lighting
• Button: 1call button
• Light sensor: Support
• Infrared sensor: Support
• Wiegandport: Support
• RS485 port: Support
• RF card reader: 13.56 MHz
• Relays out: 2
• Inputs: 3
• Microphone: -40dB
• Speaker: 8 Ohm / 2 Watt
• Powerout: 12V/400mA
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
  POE standy power: 1.857W
• 12V DC connector (if not using PoE)
  Power adapter standby power: 1.44W
• Water-proof & Dust-proof: IP65
• Installation: Wall-mounted
• Wall-mounted DIM: 190x110x40mm
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +55°C
• Storage Temperature: -40°C ~ +70°C

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711u, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator

Video

• Sensor: 1/2.7", CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p
• Video codec: H.264, H.265
  (Compared to H.264/MPEG-4, H.265 provides twice as much compression with the same quality)
• Videoresolution: up to 1920x1080p
• Max. image transfer rate: 1080p –30fps
• Viewing angle: 116°(H) / 60°(V)
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Feature

• Relays controlled individually by DTMF tones
• Camera permanently operational
• Auto-night mode with LED illumination
• White balance: auto
• Minimum illumination: 0.1LUX

Networking & Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
