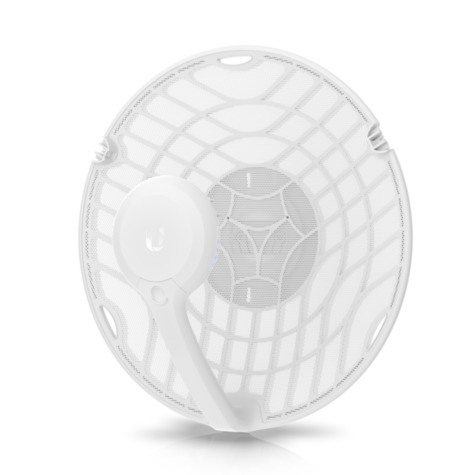

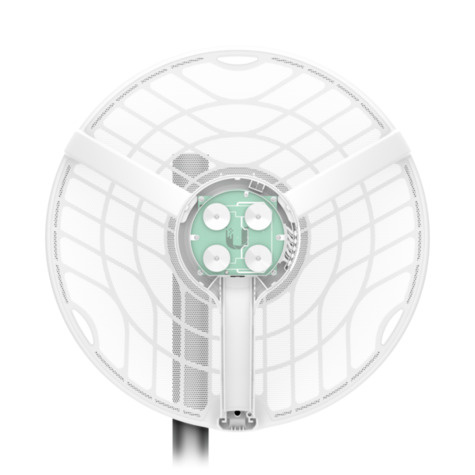

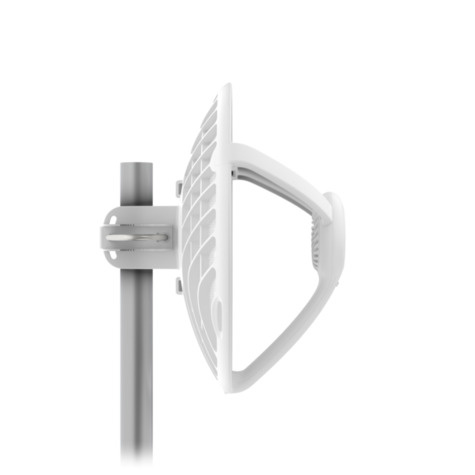

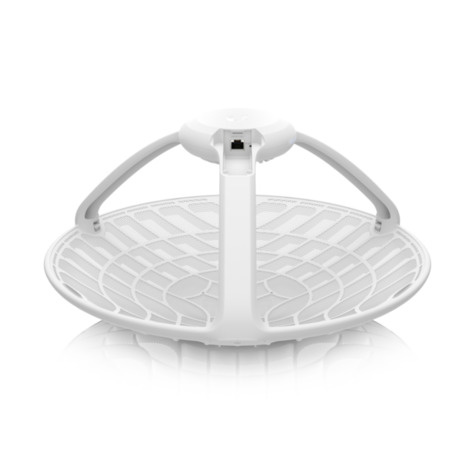

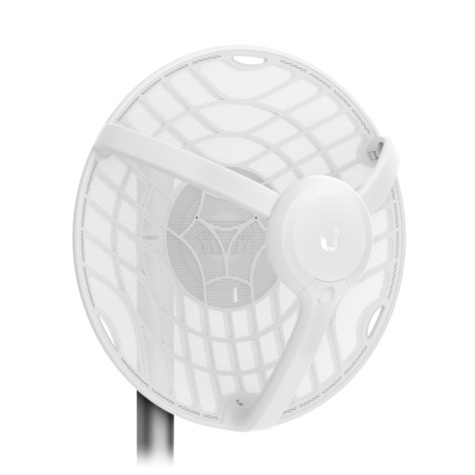

Ubiquiti airMAX GigaBeam 60GHz/5GHz 1Gbps LongRange 3km+

232,75 192,36 excl. BTW

10+ op voorraad

PRODUCT INFORMATIE.

GBE-LR RADIO OPERATING FREQUENCY (MHZ) MANAGEMENT RADIO (MHZ)

Dimensions	415 x 415 x 303 mm (16.34 x 16.34 x 11.93")
Weight Without Mount With Mount	1.4 kg (3.09 lb) 1.8 kg (3.97 lb)
Enclosure	Aluminum, UV-stabilized Polycarbonate
Antenna Gain 5 Ghz 60 Ghz	11 dBi 38 dBi
Networking Interface	(1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption	11W
Power Method	Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply	24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range	+22 to +26VDC
LEDs	Power/Ethernet/5G/60G
Wind Loading	56 N @ 200 km/h <(12.6 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
Mounting	Pole Mount (Included)
ESD/EMP Protection	± 24kV Contact/Air
Operating Temperature	-40 to 60° C (-40 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	FCC, IC, CE
Max. Conducted TX Power 5/60 GHz Combined	25 dBm
Channel Bandwidth 60 Ghz 5 Ghz	2160 Mhz 20/40/80 Mhz
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 57,000 – 66,000
Worldwide	5180 – 5875 57,000 - 66,000
Worldwide	2412 - 2472
US/CA	2412 - 2462
