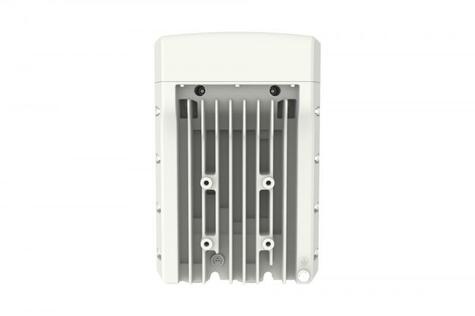

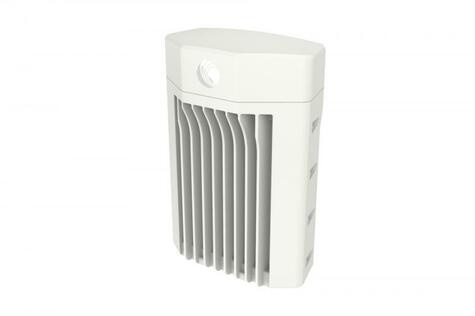

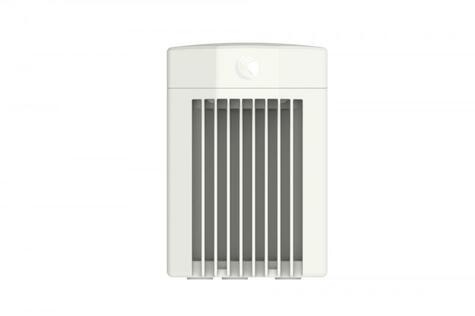

Cambium Networks cnWave V5000 Distribution Node 60 GHz

Cambium Networks cnWave V5000 Distribution Node 60 GHz
Cambium Networks cnWave V5000 Distribution Node 60 GHz
Cambium Networks cnWave V5000 Distribution Node 60 GHz
Cambium Networks cnWave V5000 Distribution Node 60 GHz
Cambium Networks cnWave V5000 Distribution Node 60 GHz
Cambium Networks cnWave V5000 Distribution Node 60 GHz

2.089,75 1.727,07 excl. BTW

op voorraad
Toevoegen aan winkelwagen
  • Op een werkdag voor 17:30 besteld, morgen in huis!
  • Gratis verzending binnen de Benelux
  • Installatieservice kant-en-klaar of op locatie
  • Kopen op rekening voor de zakelijke markt
  • Professioneel advies
-Supports 57 to 66 GHz
-Dual-sector with 280 degrees coverage
-Up to 15.2 Gbps (7.6 Gbps UL and 7.6 Gbps DL) with channel bonding
-TDMA/TDD channel access and Network Synchronization
-802.11ay technology with Terragraph certification Meer informatie
Installatieservice

PRODUCT INFORMATIE.

Frequency Range 57 to 66 GHz in a single SKU
Channel Width 2.16 GHz, 4.32 GHz
Carrier Bonding Up to 2 adjacent channels
Mode of Operation PMP or Mesh, PTP
Channel Access TDMA/TDD
Ethernet Interface 1 x 100/1000/10G BaseT with PoE In,
1 x 100/1000 BaseT with 802.3at PoE Out,
1 x SFP+
Protocol Supported IPv4, IPv6
Network Management cnMaestro, HTTP, HTTPS, SNMP v2c & v3
Maximum EIRP 38 dBm
MTU 4,000 bytes
Gain 22.5 dBi
Type Integrated
Beamforming Scan Range +/- 140 degrees azimuth, +/- 20 degrees elevation
Beam Width 12 degrees
Type Passive PoE (42-57 V)
Power Consumption 60 W with AUX PoE Out in use,
35 W without AUX PoE Out in use
Environmental IP66/67
Temperature -40 C to 60 C
Mean Time Between Failure > 40 years
Weight < 4 kg
Dimensions 280 mm x 185 mm x 102 mm
Wind Survival 200 km/h
MerkCambium Networks
ArtikelnummerC600500A004A
EAN0810722036702
Toon meer informatie
