Rally Camera

• Height x Width x Depth:
• 182.5 mm x 152 mm x 152 mm

Rally Speaker

• Height x Width x Depth:
• 103 mm x 449 mm x 80 mm

Rally Mic Pod

• Height x Width x Depth:
• 21 mm x 102 mm x 102 mm

Rally Display Hub

• Height x Width x Depth:
• 40 mm x 206 mm x 179 mm

Rally Table Hub

• Height x Width x Depth:
• 40 mm x 176 mm x 138 mm

SYSTEM REQUIREMENTS

Operating Systems

• Windows® 7, Windows 8.1 or Windows 10
• macOS 10.10 or higher

Resolutions higher than 1080p

• Windows 8.1 or higher or macOS 10.10 or higher
• USB 3.0 port and Type C cable
• Compatible software

RIGHTSENSE TECHNOLOGIES

RightLight with WDR

• Low-light compensation
  Video noise reduction
  Low-light saturation optimization
  Renders natural skin tones for each participant on camera
  Reduces backlighting and glare without darkening the entire image.

RightSight1

• Human figure detection
  Auto-frame participants at meeting start
  Auto-frame participants on-demand
  Auto-reframe participants during meetings 1

RightSound

• Machine learning AI trained to distinguish human speech from other sounds
  AEC (Acoustic Echo Cancellation)
  VAD (Voice Activity Detector)
  Background noise suppression
  Auto-level loud and soft voices

RightSound Mic Matrix

• • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
  • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  • Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension:

• • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
  • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

TECHNICAL SPECIFICATIONS

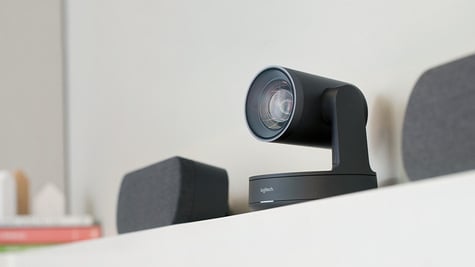

RALLY CAMERA

• Ultra-HD imaging system supports:

  • 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • 1080p, 720p at 30fps and 60 fps

• Smooth motorized pan, tilt and zoom

• Pan: ±90°

• Tilt: +50° / -90°

• 15x HD zoom

• Field of View:

  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2

• Autofocus

• 3 camera presets

• Kensington security slot

• Video mute/unmute LED indicator

• Standard tripod thread

• Lens parks at -90° in sleep mode for assured privacy

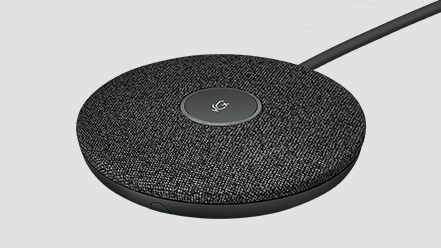

RALLY MIC POD

• Pickup range: 4.5m diameter
  Four omnidirectional microphones forming eight acoustic beams
  AEC (Acoustic Echo Cancellation)
  VAD (Voice Activity Detector)
  Background noise suppression
  Mute button with LED status indicator
  Captive 2.95m 12-pin cable
  Daisy chain up to 7 Rally Mic Pods
  Frequency response: 90Hz – 16kHz
  Sensitivity: >-27dB +/-1dB @ 1Pa
  Microphone data rate: 48 kHz

  Recommended # of participants:
  Rally (one Mic Pod): 10
  Rally Plus (two Mic Pods): 16
  Additional participants per Mic Pod: 6
  Recommended participants for Rally with 7 Mic Pods: 46

RALLY SPEAKER

• High-performance 3" (76mm) driver with rare-earth magnet
  Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
  Mini XLR cable connects to Rally Display Hub for both signal and power
  Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
  Sensitivity: 95+/-2dB SPL at ½ meter
  Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W
  Speaker sampling rate: 48 kHz

RALLY TABLE HUB

• Single CAT6A cable connection to Rally Display Hub ( 5m cable included, supports customer-supplied cables up to 50 m)
  Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
  12 Pin connector for Rally Mic Pod
  HDMI Type A passthrough to Display Hub (x2)
  USB Type C
  USB Type A (reserved for future capability)
  USB Type B (connects to meeting room computer)
  RJ45 (reserved for future capability)
  Power input

RALLY DISPLAY HUB

• HDMI Type A (x2) (connects to displays)
  USB C (connects to Rally Camera)
  USB Type B (connects to meeting room computer)
  RJ45 (connects to Table Hub)
  Mini XLR (x2)
  Powers one or two Rally Speakers
  Power input

REMOTE CONTROL

• RF remote control (line of sight not required)

• CR2032 batteries (included)

CABLES / POWER

• Camera to Display Hub
  2m USB 3.1 Type C to USB Type C 3.1

  Conference Room Computer to Display or Table Hub
  2m USB 3.1 Type A to USB Type B

  Display Hub to Table Hub
  5m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

  Display Hub to Speaker (x2)
  2.95m Mini XLR (supports customer-supplied extension cables up to 3m

  Conference Room Computer to Displays (x2)
  2m HDMI A

  Mic Pod
  2.95m: Hardwired with 12 pin connector

  Power Outlets to Power Supplies (x2)
  1m

  Power Supplies to Table Hub / Display Hub (x2)
  1.5m

AVAILABLE ACCESSORIES

• RALLY MOUNTING KIT
  Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)

  RALLY MIC POD
  Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms

  MIC POD MOUNT
  Anchors mics and hides cables for a finished look

  RALLY MIC POD HUB
  Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling

  RALLY SPEAKER
  Add a second Rally Speaker for larger rooms

COMPATIBILITY AND CERTIFICATIONS

• Plug-and-play USB connectivity

• Certified for Skype for Business and Microsoft Teams

• Zoom Certified

• Fuze Certified

• Certified for Google Hangouts Meet Hardware

• Microsoft Cortana® certified

• Cisco Jabber® and WebEx Compatible

• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

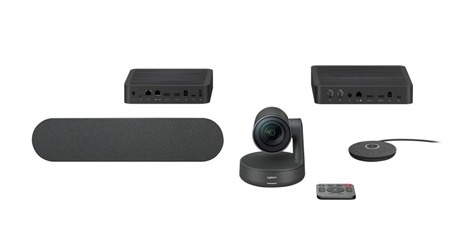

PACKAGE CONTENTS

• Logitech Rally
  Rally Camera
  Rally Display Hub
  Rally Table Hub
  Rally Speaker (x1)
  Rally Mic Pod (x1)
  Remote control
  USB Type C to USB Type C
  USB Type A to USB Type B
  CAT6A Ethernet cable
  HDMI Type A (x2)
  A/C cables (x2)
  Power Supplies (x2)
  Documentation

  Logitech Rally Plus
  Rally Camera
  Rally Display Hub
  Rally Table Hub
  Rally Speaker (x2)
  Rally Mic Pod (x2)
  Remote control
  USB Type C to USB Type C
  USB Type A to USB Type B
  CAT6A Ethernet cable
  HDMI Type A (x2)
  A/C cables (x2)
  Power Supplies (x2)
  Documentation
