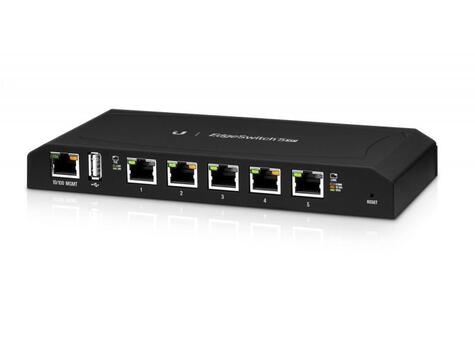

Ubiquiti EdgeSwitch 5XP (TS-5-POE)

101,-

83,47 Excl. btw

Niet op voorraad

Veilig achteraf betalen via of

Uitverkocht

We sturen je een mailtje als we dit artikel weer op voorraad hebben.

Aan verlanglijst toevoegen

Vaak samen gekocht.

Op ons kun je rekenen.

Gratis verzending binnen de Benelux
Installatieservice kant-en-klaar of op locatie
Kopen op rekening voor de zakelijke markt
Professioneel advies per telefoon
Altijd minimaal 2 jaar garantie^*
Klantbeoordeling 9,2

Introducing the Advanced Power over Ethernet Switches, EdgeSwitch 5 XP from Ubiquiti Networks. EdgeSwitch 5 XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch 5 XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.EdgeSwitch 5 XP is available in multiple versions to meet your deployment needs.EdgeSwitch 5 XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.

5 Gigabit PoE Ports
24V Configurable Passive PoE
EdgeSwitch XP Configuration Interface
Wall-Mountable

Specifications EdgeSwitch 5 XP

Dimensions: 197 x 87.5 x 27.3 mm
Weight: 250 g
Power Input: 24VDC, 2.5A Power Adapter (Included)
Max. Power Consumption: 60 W
PoE Out Voltage Range: 22-24VDC
Max. PoE Wattage Per Data Port: 11.5 W
ESD Rating: 24 kV Air / 24 kV Contact
PoE Method: Passive
Button: Reset
USB Port: 2.0 Type A (Reserved for Future Use)
Processor: MIPS 24K, 400 MHz
System Memory: 64 MB
Code Storage: 8 MB
PoE Configurable Per Port:
- Management Port: N/A
- Data Ports: Off/24V
LEDs Per Port
- Management Port: Power/Link
- Data Ports: PoE, Speed/Link/Activity
Networking Interfaces:
- Management Port: (1) 10/100 Ethernet Port
- Data Ports: (5) 10/100/1000 Ethernet Ports
Certifications: CE, FCC, IC
Wall-Mount: Yes
Operating Temperature: -25 to 55 C (-13 to 131 F)
Operating Humidity: 90% Non-Condensing
