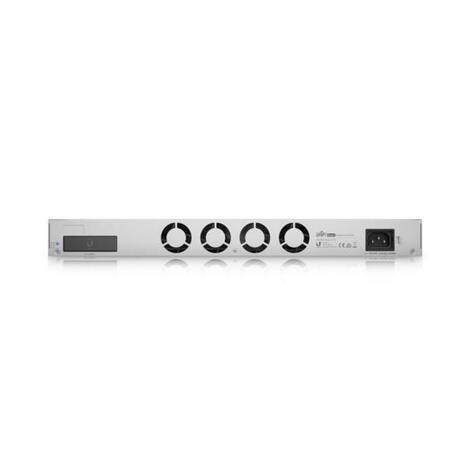

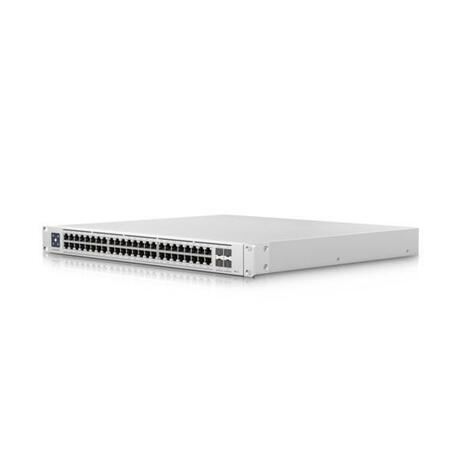

Ubiquiti Switch Enterprise 48 PoE

Layer 3, PoE switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports and (4) 10G SFP+ ports.

De Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is een volledig managed switch met (48) 2.5GbE, 802.3at PoE+ RJ45 poorten, (4) 10G SFP+ poorten en totaal 720W PoE power. Bovenop de Layer 3 functies levert deze switch een uitgebreid portfoilio aan Layer 2 switch protocols, inclusief port-specifieke operating modes (switching, mirroring of aggregeren). De USW Enterprise 48 PoE beschikt ook over een 1.3" LCM kleuren touchscreen met belangrijke systeem of connectie statussen.

Daarnaast biedt de USW Enterprise 48 PoE ondersteuning voor het UniFi SmartPower Redundant Power System (USP RPS los verkrijgbaar). Deze switch kan overal vandaan geconfigureerd of gemonitored worden dankzij de krachtige UniFi Network web applicatie of mobiele app.

(1) 1.3" LCM color touchscreen with AR switch management
(48) 2.5GbE, 802.3at PoE+ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
720W total PoE supply
Layer 3 switching features

Mechanical

Dimensions	442 x 44 x 400 mm
Weight	Without Mount: 6.2 kg With Mount: 6.3 kg
Enclosure Material	SGCC Steel
Mount Material	SGCC Steel

Hardware

Total Non-Blocking Throughput	160 Gbps
Switching Capacity	320 Gbps
Forwarding Rate	238.095 Mpps
Max Power Consumption (Excluding PoE Output)	150W
Power Method	(1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz, (1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power Supply	AC/DC, Internal, 100-240V, 10A Max.
Management Interface	Ethernet In-Band
Networking Interfaces	(48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ Interfaces	(4) 1/10G SFP+ ports
PoE Interfaces	(48) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Total Available PoE	720W
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3af Mode	44 to 57V
Voltage Range 802.3at Mode	50 to 57V
Services	SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection	Air: +/- 16 kV, Contact: +/- 12 kV
LCM Display	(1) 1.3" LCM color touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted
Button	Factory Reset
Operating Temperature	-5 to 40 C
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC

LED

Ethernet	White: Link or Activity
SFP+	White: Link or Activity

Package Contents

USW-Enterprise-48-PoE, Power Cord, Rack-Mount Brackets (2), Bracket Screws (8), Mounting Screws (4), Cage Nuts (4), Rubber Feet (4), Quick Start Guide.
