Name: Ubiquiti UMA-D - Directional Dual-Band Antenna for UAP-AC-M
Brand: Ubiquiti
SKU: UMA-D
Price: 96.75 EUR
Availability: InStock

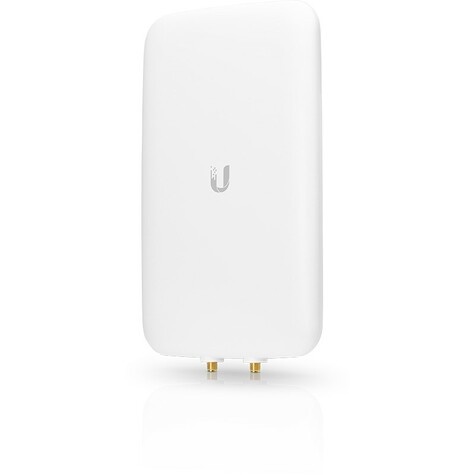

Ubiquiti UMA-D - Directional Dual-Band Antenna for UAP-AC-M

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.

Antenna Features:

Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure:

Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting:

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility:

The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Specifications:

Dimensions	201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3")
Weight	Without mount: 400 g (0.9 lb) With mount: 480 g (1.1 lb)
Enclosure material	Outdoor UV-stabilized plastic

Supported frequency range	2.4–2.5 GHz 5.1–5.9 GHz
RF Connections	(2) RP-SMA
Gain 2.4 GHz 5 GHz	10 dBi 15 dBi
HPOL beamwidth 2.4 GHz 5 GHz	90° 45°
VPOL beamwidth 2.4 GHz 5 GHz	90° 45°
Elevation beamwidth 2.4 GHz 5 GHz	90° 45°
Max VSWR	2:1
Polarization	Dual-linear
Cross-pol isolation 2.4 GHz 5 GHz	25 dB 30 dB
