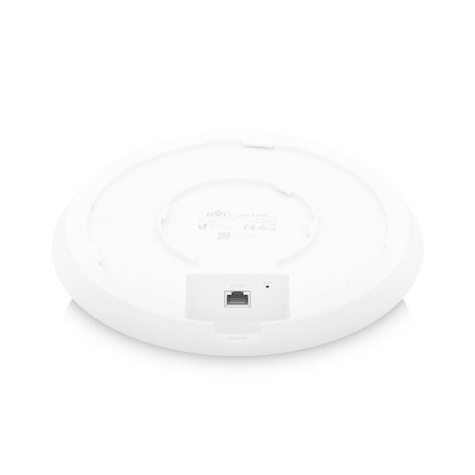

Name: Ubiquiti Unifi 6 LR 802.11ax 2,4 + 5GHz/ 3000 Mbps excl. adapter
Brand: Ubiquiti
SKU: U6-LR
Price: 229.00 EUR
Availability: InStock

Ubiquiti Unifi 6 LR 802.11ax 2,4 + 5GHz/ 3000 Mbps excl. adapter

LET OP: De U6-LR single-pack wordt geleverd ZONDER PoE injector!

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
Four-stream high-efficiency Wi-Fi 6 technology
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
Powered with 802.3at PoE (PoE injector not included)

Managed by UniFi Network Controller version: 6.0.34 or higher

Mechanical

Dimensions	diameter 220 x 48 mm
Weight	Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb)
Enclosure Material	Plastic
Mounting Material	SGCC Steel
Weatherproofing	IP54

Hardware

Processor Specs	Dual-Core Cortex A53 at 1.35 GHz
Memory Information	512 MB
Management Interface	Ethernet In-Band
Networking Interface	(1) 1 Gbps Ethernet RJ45
Buttons	Factory Reset
LEDs	RGB
Power Method	802.3at PoE, Passive PoE (48V)
Power Supply	802.3at PoE; 48V, 0.65A PoE Adapter (Not Included)
Supported Voltage Range	44 to 57VDC
Max. Power Consumption	16.5W
Max. TX Power 2.4 GHz 5 GHz	26 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	4 x 4 4 x 4
Throughput Speeds 2.4 GHz 5 GHz	600 Mbps 2400 Mbps
Antenna Gain 2.4 GHz 5 GHz	4 dBi 5.5 dBi
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-30 to 60 C (-22 to 140 F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC

Software

Wi-Fi Standards	802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) Supported With Upcoming Controller Versions
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Trafc Isolation	Supported
Concurrent Clients	300+

Supported data rates (MBPS)

802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Inhoud Verpaking:

Unifi 6-LR, Mounting Plate, Ceiling Backing Plate, Ceiling Screws, Keps Nuts, T-Bar Mounts, T-Bar Screws, Allen Wrench, Wall Screws, Screw Anchors - (NO POE ADAPTER)!

LET OP: PoE adapter + stroomkabel worden niet meegeleverd!
