Name: Ubiquiti UniFi Access Magnetic Lock - 540kg
Brand: Ubiquiti
SKU: UA-Lock-Magnetic-540kg
Price: 209.50 EUR
Availability: InStock

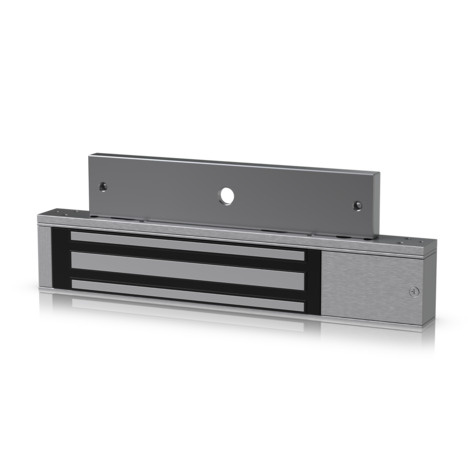

Ubiquiti UniFi Access Magnetic Lock - 540kg

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

Holds up to 270 kg or 540 kg (600-1,200 lb)

Can be installed on a wide variety of door types*

*— Access Lock Magnetic 540kg: All types excluding full glass

Mechanical:

Dimensions	UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6")
Weight	UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb)
Enclosure material	Device/brackets: aluminum Armature: steel

Hardware:

Voltage	12V DC
Current power	UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10%
Wiring connection	Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub) Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/-(DPS-onUA-Hub)
Lock type	Fail safe lock Single door
Holding force	UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb)
LED	Green: unlocked Red: locked
Suitability	UA-Lock-Magnetic-270kg: wooden/metal/glass door UA-Lock-Magnetic-540kg: wood/metal door
Mounting accessories	UA-Lock-Magnetic-270kg L bracket : door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door U bracket: used with glass door UA-Lock-Magnetic-540kg L bracket: door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door
Ambient operating temperature	-10 to 50° C (14 to 122° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	FCC, IC, CE
