Name: Ubiquiti UniFI Enterprise Network Video Recorder
Brand: Ubiquiti
SKU: ENVR
Price: 2237.00 EUR
Availability: OutOfStock

Ubiquiti UniFI Enterprise Network Video Recorder

Voor uitlevering van dit product wordt een verplichte dealregistratie opgemaakt, is deze akkoord vanuit UBNT dan ontvangt u 5% korting op uw aankoop in de vorm van een credit. Zonder dit akkoord mogen wij het product niet uitleveren.

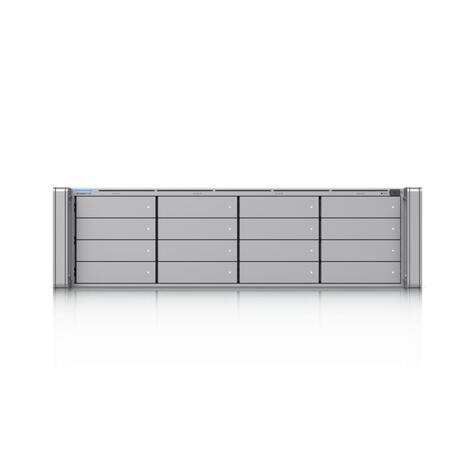

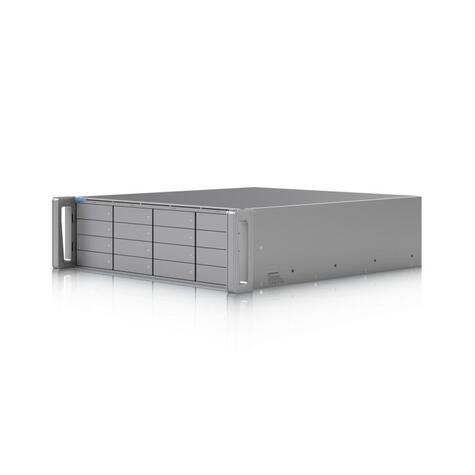

3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

The UniFi Enterprise Network Video Recorder (ENVR) is a high-performance 3U rack-mounted device designed to manage large-scale surveillance setups. With 16 drive bays supporting both 2.5" and 3.5" HDD/SSD storage, it can accommodate up to 70 4K cameras or 210 Full HD cameras, making it ideal for enterprise environments. The ENVR is equipped with (2) 10G SFP+ uplinks, (1) 10 GbE RJ45 port, and offers data protection through advanced RAID storage technology. Its dual hot-swappable power supplies ensure power redundancy and uninterrupted operation.

Built for reliability, the ENVRfeatures a sturdy SGCC steel enclosure and aluminum mounting material, with support for slide rails in 19" four-post racks. It boasts a variety of management interfaces, including Ethernet In-Band, and is designed for efficiency, with a maximum power consumption of 410W. Whether for small or large-scale video recording needs, this NVR delivers seamless, scalable performance with high-speed networking and robust data protection.

(16) 3.5" HDD / SSD support

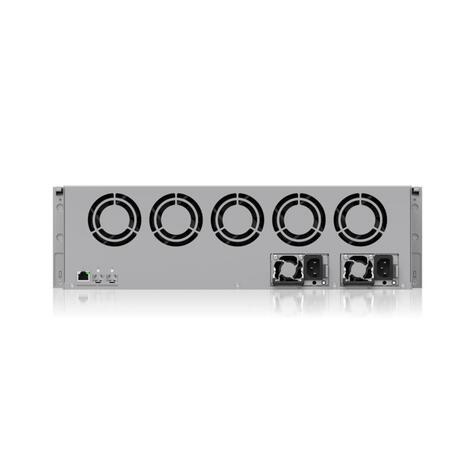

(2) 10G SFP+ uplinks and (1) 10 GbE RJ45 port
Data protection with RAID storage technology

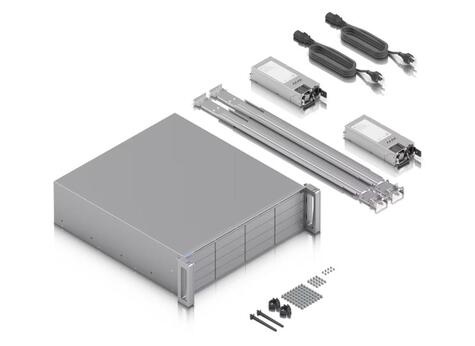

(2) included hot-swap PSUs for power redundancy

Mechanical

Dimensions:	481.4 x 480 x 132 mm (19 x 18.9 x 5.2")
Weight:	16.6 kg (36.6 lb)
Enclosure material:	SGCC steel
Mount material:	Aluminium

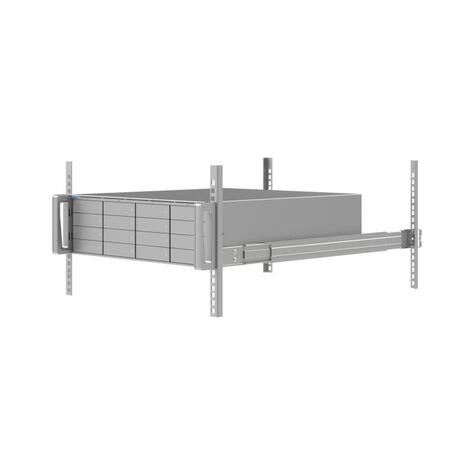

Slide rails support:	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1000 mm (25.6–39.4”)

Hardware

Management interface:	Ethernet In-Band
Networking interface:	(1) 1/2.5/5/10 GbE RJ45 port (2) 1/10 GbE SFP+ ports
Power method:	(2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable)
Power supply:	Hot-swappable 550W CRPS
Supported voltage range:	100—240V AC
Max. power consumption:	410W
Max. power budget for Drives:	310W
ESD/EMP protection:	Air: ± 12kV, contact: ± 8kV
Button:	Factory reset
Ambient operating temperature:	-5 to 40° C (23 to 104° F)
Ambient operating humidity:	5 to 95% noncondensing
Certifications:	FCC, CE, IC

Capacity

HD cameras:	210
2K cameras:	140
4K cameras:	70

LEDs

System:	(1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted
Ethernet:	Green: link/activity
SFP+:	Green: link/activity
HDD:	White: disk detected Amber: disk error
