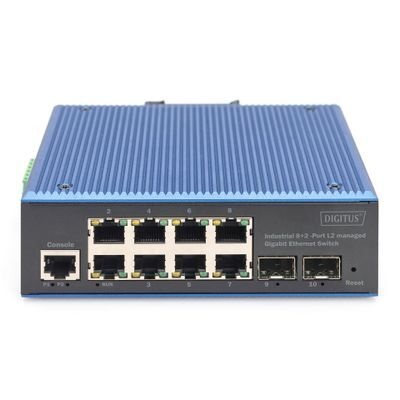

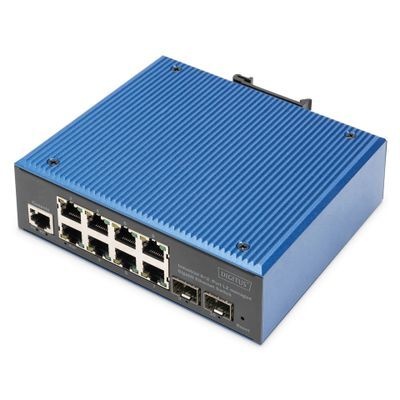

DIGITUS 8-Port Gigabit Industrial Switch L2 managed + 2 SFP Uplink

DIGITUS 8-Port Gigabit Industrial Switch L2 managed + 2 SFP Uplink
DIGITUS 8-Port Gigabit Industrial Switch L2 managed + 2 SFP Uplink
DIGITUS 8-Port Gigabit Industrial Switch L2 managed + 2 SFP Uplink

256,25

211,78 Excl. btw

10+ op voorraad

Veilig achteraf betalen via of

Op een werkdag voor 16:00 besteld, morgen in huis!

Toevoegen aan winkelwagen Aan verlanglijst toevoegen

Vaak samen gekocht.

Op ons kun je rekenen.

  • Gratis verzending binnen de Benelux
  • Installatieservice kant-en-klaar of op locatie
  • Kopen op rekening voor de zakelijke markt
  • Professioneel advies per telefoon
  • Altijd minimaal 2 jaar garantie*
  • Klantbeoordeling 9,2

Productinformatie.

Supports:

  • IEEE802.3x flow control and backpressure.
  • Store-and-forward technology for optimized data transmission.

Features:

  • Automatic speed and half-/full-duplex detection and configuration.
  • Bandwidth: 20 Gbps.
  • Packet buffer memory: 4.1 Mbit.
  • Packet forwarding rate: 15 Mbps.
  • MAC address table size: 4K.
  • Jumbo frame support: Up to 10,240 bytes.
  • ESD protection: 6 kV.
  • EFT protection: 6 kV.
  • Metal housing, IP40-rated.
  • Lightning and surge protection: 4 kV.
  • DIN rail mounting compatibility.

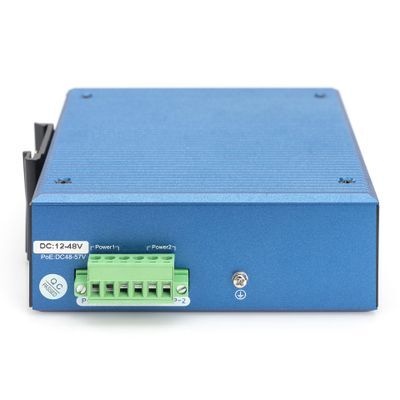

  • Redundant power supply with reverse polarity protection.
  • Power supply: 12–48 V DC.
  • Power consumption: <10 W.
  • Removable terminal connector.
  • Protection class: IP40.
  • Dimensions: 143.7 x 125 x 47.7 mm.
  • Weight: 0.6 kg.

Environmental Conditions:

  • Operating temperature: -40 to 80°C.
  • Storage temperature: -40 to 80°C.
  • Humidity: 5% to 95% (non-condensing).
  • MTBF: 300,000 hours.

Port Features:

  • IEEE 802.3x flow control.
  • Interface counters.
  • Storm control.
  • Link aggregation (static, dynamic, LACP).
  • Supports up to 8 aggregation groups with up to 8 ports per group.
  • Source MAC, destination MAC, source-destination MAC, source IP, destination IP, source-destination IP routing strategies.

MAC Address Management:

  • MAC table management.
  • Port forwarding.
  • IVL forwarding.
  • Static MAC address support.
  • MAC address binding and filtering.
  • Port mirroring (port-based).

Spanning Tree Protocol (STP):

  • IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP.
  • ERPS (G.8032), single ring, sub-ring, multi-ring, load balancing.
  • Recovery time <50 ms.

VLAN:

  • VLAN-based QinQ, GVRP support.
  • Up to 4094 VLANs.
  • Port-based VLAN, protocol VLAN, MAC-based VLAN, IP subnet VLAN, voice VLAN.

LLDP:

  • LLDP, LLDP-MED support.

IGMP Snooping:

  • IGMP Snooping V1/V2/V3, source port verification, fast leave, IGMP filtering.

MLD Snooping:

  • MLD Snooping V1/V2, source port verification, fast leave, MLD filtering.

ACL:

  • IP standard ACL, IPv4/IPv6.
  • Extended MAC and IP ACLs.
  • Matches L2, L3, and L4 fields.
  • Logging, forwarding, mirroring, and rate limiting.

QoS:

  • QoS class reassessment.
  • SP and WRR queue scheduling.
  • Rate limiting for ingress and egress ports and queues.
  • Policy-based QoS.
  • Storm control.
  • 8 queues per port.

Dot1x:

  • Port access control, user access control, MAC address access control.

Other Layer 2 Features:

  • Diverse additional L2 functionalities.
