Name: BARCO Clickshare Control Panel
Brand: BARCO
SKU: R9861720
Price: 951.75 EUR
Availability: InStock

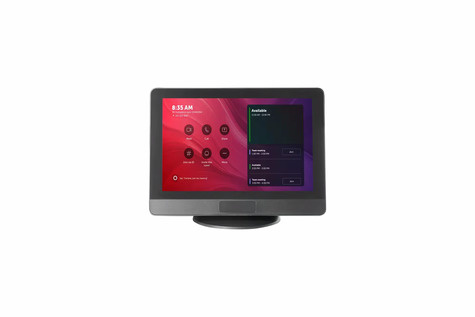

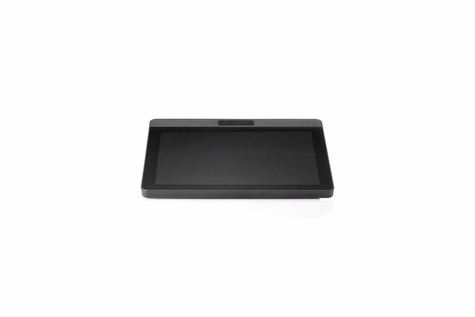

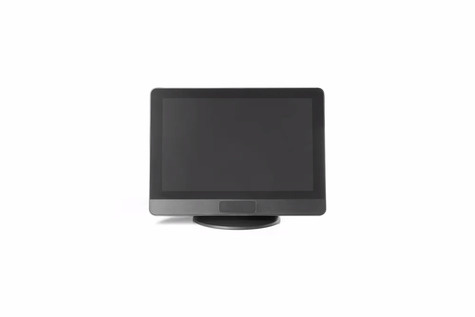

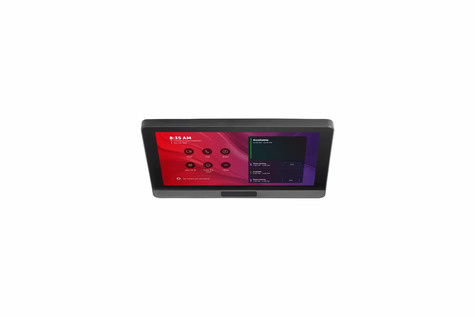

BARCO Clickshare Control Panel

Touchscreen: 10.1-inch projected capacitive touchscreen with anti-fingerprint and anti-glare coatings, supporting up to 4 touch points for enhanced visibility and durability
Resolution: 1280*800 @60Hz
Brightness: 300 nits
Contrast Ratio: 1000:1
Viewing angle: 80° (Up/Down/Left/Right)
Human detection sensor: Automatically detects in-room human movement within a 2-meter range and 90° field of view to wake the system.
Connections: USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance
Temperature range: Operating: 0°C + 40°C (+32°F to +104°F) Storage: -20°C to +60°C (-4°F to + 140°F)
Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system: Kensington lock
Dimensions (HxWxD): 254.5 x 187.9 x 76.9 (mm)
Power consumption: Powered over USB from connected Base Unit Operational: 7.3W (max) Standby: <0.5W
Weight: 820gr
Box content: ClickShare Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Safety manual, Quick setup guide ClickShare 10M 20W USB-C AOC Cable (Directional)
Cable Length / Diameter: 10M / 6mm
Interface: USB Type-C 3.2 Gen1, DP 1.4
Power Delivery: 20W
Bend Radius: 60mm/30mm (Fixed/Temporarily) While a minimum bend of 30mm is acceptable during handling or routing, it must not be maintained as a permanent fixture.
Temperature range: Operating: -10°C + 60°C (+14°F to +140°F) Storage: -20°C to +70°C (-4°F to + 158°F)
Humidity: Storage/Operation: 0 to 85% relative humidity, non-condensing
Flame rated: VW-1
Box content: ClickShare 10M 20W USB-C AOC cable, USB-C cable lock kit
