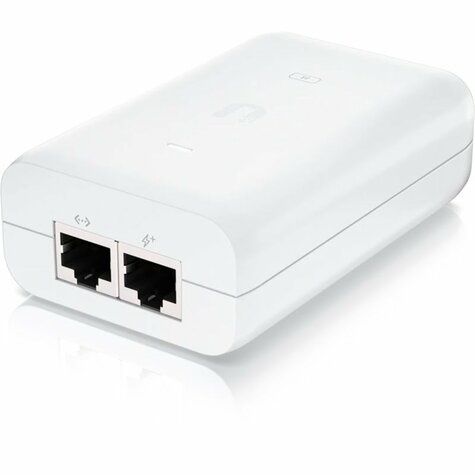

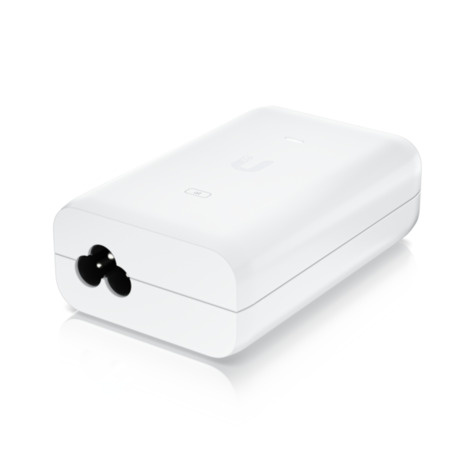

Toevoegen aan winkelwagen Aan verlanglijst toevoegenThe U-PoE-AT is a PoE+ injector designed to power 802.3at compatible devices. Capable of delivering 30W of PoE+ power, the U-PoE-AT can be used to power any U6 Access Point (U6-LR, U6-Lite, U6-Pro), while also protecting against electrical surges.
Specifications:
Model | U-POE-at |
Dimensions | 93 x 62 x 35 mm (3.66 x 2.44 x 1.38") |
Weight | 156 g (5.5 oz) |
Output voltage | 48V DC @ 0.65A |
LAN activity indicator | No |
Gigabit LAN port | Yes |
Remote reset capability | No |
Reset button | No |
Rated voltage | 100—240V AC @ 50/60Hz |
Input current | 0.75A Max. |
Inrush current | <100A peak at 26_ |
Efficiency | 87% |
Output ripple | 1% max. |
Switching frequency | 70 kHz max. |
Line regulation | ≤ 3% |
Load regulation | ≤ 5% |
2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
4-pair powering | No |
AC connector | IEC-320 C6 |
Data In / PoE | RJ45 shielded socket |
Surge protection | Difference and common mode |
Clamping protection | 11V data, 60V power |
Max. surge discharge | 1500A (8/20 μs) power |
Peak pulse current | 36A (10/1000 μs) data |
Shunt capacitance | <5 pF data |
Response time | <1 ns |
Ambient operating temperature | 0 to 40° C (32 to 104° F) |
Storage temperature | -30 to 70°C (-22 to 158° F) |
Ambient operating humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC, UL |
