Name: DIGITUS Professional DN-93903 - cable junction box
Brand: DIGITUS
SKU: DN-93903
Price: 13.25 EUR
Availability: InStock

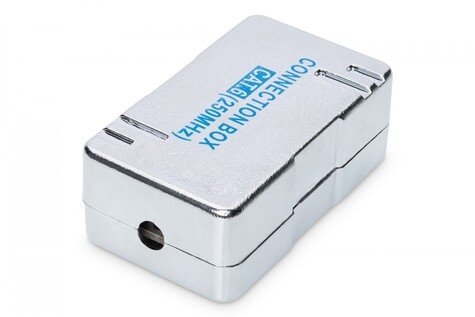

DIGITUS Professional DN-93903 - cable junction box

13,25

10,95 Excl. btw

50+ op voorraad

Veilig achteraf betalen via of

Op een werkdag voor 16:00 besteld, morgen in huis!

The DIGITUS connection module is for the purpose of connecting or extention of twisted pair cables.

Transmission properties: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount
Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
Suitable for connection of installation cables - extension of cables, replacing of defect cable links
Integrated strain relief for installation cables
Suitable for cables with AWG 22-26 diameter
Technical properties:
Housing material: ABS UL-94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Workable with 110- and KRONE LSA punch down tools
