Transmission properties:

> Category 6A, 10G Base-T, 500 MHz

> ISO/IEC 11801 3rd ed.; EN50173-1; IEC 60603-7-51

> Suitable for PoE/PoE+/4PPoE (IEEE 802.3af; 3at; 3bt)

> General specifications:

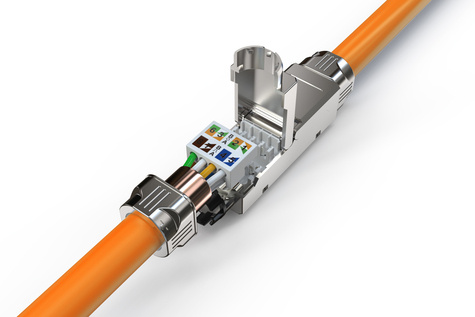

> Cable installation via insulation-displacement connector, color coded in accordance with EIA/TIA 568 A & B

> Cable grip and cable fixation using screw cable grip

> Tool-free mounting connection

> 360° shield contact

> Technical specifications:

> Case material: Zinc die-cast – nickel-plated

> Contact material: Phosphor bronze

> Contact coating: Nickel, gold-plated 0.5 µ

> Physical specifications:

> Insertion force: Max. 30N (as per IEC 60603-7-5)

> Holding force: 7.7 kg between jack and plug

> Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)

> Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)

> Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire

> Tested with AWG 22/1 solid installation cable

> (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)

> Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
